Supply and installation of hydraulic gates in the storm tank La Estrella, in Badalona (Barcelona).

Client:
City hall of Badalona
Location:
Barcelona
Period:
From February 2012 to June 2013
Type of service:
Projects

Design, manufacture, assembly and start-up of 12 high-speed cleaning flaps, 2 horizontally-moving sluice gates, 4 standing hatchway gates.

Contractor: Aqualogy Medio Ambiente S.A.

With a maximum capacity of 30.000 m³ , it is the first rainwater regulation reservoir in Badalona.

Project financed jointly with an 80% of European Union's cohesion funds. It uses a surface of 3.160 m² with a medium height of 12,5 m and 12 cleaning streets.

It receives water from two intake manifolds; a manifold on the street Torrent de Batllòria and one on the rambla Sant Joan.

Its main function is to retain waste water and rainwater during days of high precipitation, avoid the manifolds crash (mainly on the secondary network) and avoid the direct spill on the litoral of non-treated water.


DETAILS

Technical data

High-speed cleaning gates

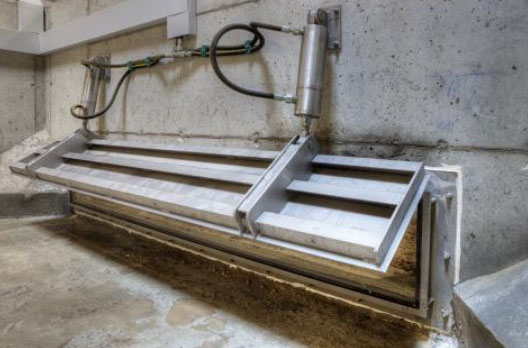

12 gates of 2.800 mm. width and 400 mm. height. Activated by means of a double hydraulic cylinder to ensure watertightness and with an opening time lower than 0,8 seconds.

Horizontally-moving sluice gate

2 gates of 2.500 mm. width and 2.500 mm. height. Activated by means of a hydraulic cylinder with displacement transducer.

Materials

Manufactured with stainless steel AISI 316L, and watertightness by means of EPDM rubber.
